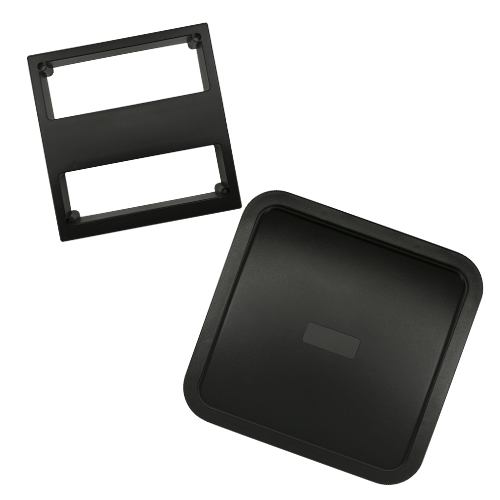

Middle-range readers for barriers

RW1 H-26

C1 contactless card and contactless key tag reader with an increased reading distance, reading distance of C1C cards of up to 60cm, C1H cards of up to 100cm, Wiegand 26-bit protocol, external powering

  • Reader with an increased reading distance
  • For 125kHz passive cards (we recommend the use of cards with an improved range)
  • For opening barriers, sliding or roller doors in garages, opening automatic doors, etc.
  • Suitable for office and residential buildings, warehouses, garages, parking lots, hospitals, restaurants, etc.
  • Reading distance of up to 100cm (using cards with an improved range)
  • For use with Populus access controllers
  • Also suitable for outdoor installation



TECHNICAL DATA

  • Dimensions: 235×240×35mm
  • Reading frequency: 125kHz
  • Range: up to 60cm (with a standard card) or up to 100cm (with a long-range card)
  • Reading frequency: 0.2 /
  • output: 26-bit Wiegand
  • Powering: 12V DC
  • Operating temperature: -25 to +75°C
  • Permissible humidity: 10–90%
  • IP65 protection

Long-range readers for barriers

L 870-W

Long-range reader for C8 UHF passive cards, for outdoor installation onto a pillar, dimensions of 260×260×73mm, reading frequency 866-868MHz, reading distance of up to 5m, temperature range -10 to +60°C, ISO18000-6C, EPC Class 1 Gen 2

  • UHF readers with an integrated antenna and a very long reading distance
  • High reading speed
  • For passive UHF cards (866MHz)
  • Reliable reading of several cards at once (anti-collision)

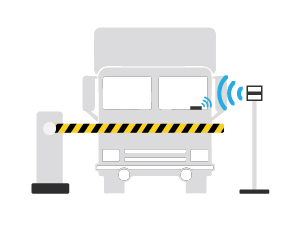

  • For opening barriers, industrial sliding doors, roller doors, etc.
  • Suitable for logistics companies, warehouses, bus stops, parking lots, libraries, schools, etc.
  • Reading distance of up to 5m
  • For use with Populus controllers
  • Suitable for outdoor installation
  • Bracket and power supply are included



TECHNICAL DATA

  • Dimensions: 260×260×73mm
  • RFID support: ISO 18000-6C, EPC Class 1 Gen 2
  • Reading frequency: 865–868MHz
  • RF power: 28dBm
  • Reading distance: up to 5m
  • Output: 26-bit Wiegand
  • Powering: 12–24V DC (from Populus P-x-B)
  • Current consumption: 1A
  • Operating temperature: -10 to +60°C
  • Permissible humidity: 10% to 90%
  • IP65 protection
